Soil Heat‑Flux Estimation & Validation

This notebook demonstrates how to derive surface ground‑heat flux (G₀) from a SoilVUE profile using the helper functions included in the project repository, and then compares the derived values with the in‑situ heat‑flux‑plate measurements (“G”) available in the eddy‑covariance flux file.

Data files used:

File	Contents	Native resolution
`21026_Statistics_AmeriFlux0.dat`	SoilVUE profile statistics (T, VWC, κ etc.)	Site‑logger native (≈ 5–10 min)
`21025_Flux_AmeriFluxFormat_30.dat`	30‑min AmeriFlux‑format flux file (includes G)	30 min

The analysis proceeds as follows:

Load & tidy the two datasets.
Estimate ground‑heat flux from the SoilVUE temperatures and soil‑moisture–dependent conductivity using soil_heat.compute_heat_flux_conduction.
Merge the estimated series with the measured 30‑min “G” record.
Evaluate performance using RMSE & NME (functions in gao_et_al.py) and quick visualisations.

Note – The SoilVUE statistics file shipped with this example has a single timestamp header (2024‑07‑11). Rows are therefore back‑filled with that value and treated as measurements for 11 July 2024. If your logger exports full timestamps, simply remove the forward‑fill block below.

Import relevant libraries

[ ]:

[2]:

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from pathlib import Path
import sys
import micromet
# Project helper modules (all live in /mnt/data after upload)
sys.path.append('../../src')
import soil_heat                     # gradient & calorimetric methods
#import gao_et_al as gao              # RMSE & NME helpers

[3]:

station_path = Path("G:/Shared drives/UGS_Flux/Data_Downloads/Dugout_Ranch/")

Load SoilVUE Data

[4]:

dfs = {}

for file in station_path.rglob("*21031_Statistics_AmeriFlux*.dat"):
    fileno = file.stem.split("_")[-1].replace("AmeriFlux", "")
    dfs[fileno] = pd.read_csv(file, na_values=['NAN'], engine='python',)
df_sv = pd.concat(dfs,ignore_index=True).iloc[50:,:57]

# Back‑fill the one timestamp so that every row carries a datetime label
df_sv['TIMESTAMP_START'] = df_sv['TIMESTAMP_START'].ffill()

# Parse to pandas datetime (format YYYYMMDDhhmm)
df_sv['datetime'] = pd.to_datetime(df_sv['TIMESTAMP_START'], format='%Y%m%d%H%M')

# For this demo we keep only the channels needed for the gradient method
df_sv = df_sv.astype({'T_1_1_1': float,
                      'T_1_2_1': float,
                        'T_1_3_1': float,
                        'T_1_4_1': float,
                        'T_1_5_1': float,
                        'T_1_6_1': float,
                        'T_1_7_1': float,
                      'VWC_1_1_1': float,
                      'VWC_1_2_1': float,
                        'VWC_1_3_1': float,
                        'VWC_1_4_1': float,
                        'VWC_1_5_1': float,
                        'VWC_1_6_1': float,
                        'VWC_1_7_1': float,
                        'T_CANOPY': float,
                        'NETRAD': float,
                        'SW_IN': float,
                        'SW_OUT': float,
                        'LW_IN': float,
                        'LW_OUT': float,
                      })
df_sv = df_sv.set_index('datetime').sort_index().drop_duplicates()
df_sv = df_sv.loc[pd.to_datetime('2023-07-01'):]

#df_sv['datetime'] = pd.date_range(start='2024-07-11 05:30', periods=589, freq='30min')
# Package expects the DataFrame columns to be named explicitly
df_grad =df_sv.rename(columns={
    'T_CANOPY':'T00cm',
    'T_1_1_1':'T05cm',
    'T_1_2_1':'T10cm',
    'T_1_3_1':'T20cm',
    'T_1_4_1':'T30cm',
    'T_1_5_1':'T40cm',
    'T_1_6_1':'T50cm',
    'T_1_7_1':'T60cm',
    'VWC_1_1_1':'VWC05cm',
    'VWC_1_2_1':'VWC10cm',
    'VWC_1_3_1':'VWC20cm',
    'VWC_1_4_1':'VWC30cm',
    'VWC_1_5_1':'VWC40cm',
    'VWC_1_6_1':'VWC50cm',
    'VWC_1_7_1':'VWC60cm',
})

[5]:

df_grad

[5]:

	TIMESTAMP_START	TIMESTAMP_END	ALB	NETRAD	SW_IN	SW_OUT	LW_IN	LW_OUT	T00cm	T_SI111_body	...	WS	WD	LWmV_1_1_1	LWMDry_1_1_1	LWMCon_1_1_1	LWMWet_1_1_1	LWmV_1_1_2	LWMDry_1_1_2	LWMCon_1_1_2	LWMWet_1_1_2
datetime
2023-07-20 09:41:00	2.023072e+11	2.023072e+11	28.26583	318.8813	637.4134	180.1522	357.5272	495.9071	32.17941	28.71401	...	2.701577	306.6066	257.1425	62.5	0.0	0.0	255.5927	62.5	0.0	0.0
2023-07-20 10:00:00	2.023072e+11	2.023072e+11	28.15890	356.0205	707.7589	199.2483	358.8571	511.3472	34.38037	29.93085	...	2.064533	281.3860	256.7885	100.0	0.0	0.0	255.1927	100.0	0.0	0.0
2023-07-20 10:30:00	2.023072e+11	2.023072e+11	27.51952	412.0310	787.1783	216.5737	362.4536	521.0272	35.60567	30.57986	...	3.209229	283.3472	256.8130	100.0	0.0	0.0	255.2341	100.0	0.0	0.0
2023-07-20 11:00:00	2.023072e+11	2.023072e+11	27.00862	456.5611	858.3252	231.7979	364.8067	534.7730	37.48657	30.97627	...	2.742912	299.0038	256.7047	100.0	0.0	0.0	255.3200	100.0	0.0	0.0
2023-07-20 11:30:00	2.023072e+11	2.023072e+11	26.51160	498.9389	917.5994	243.2511	371.8264	547.2357	39.28394	32.05534	...	2.307465	340.5045	256.3628	100.0	0.0	0.0	255.1371	100.0	0.0	0.0
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
2025-05-13 09:00:00	2.025051e+11	2.025051e+11	23.49375	446.7189	761.8327	178.9415	289.9461	426.1184	19.63299	21.44107	...	5.782328	148.2818	258.6791	100.0	0.0	0.0	258.3070	100.0	0.0	0.0
2025-05-13 09:30:00	2.025051e+11	2.025051e+11	22.89209	509.1336	835.5638	191.2458	294.1239	429.3082	20.33200	21.40081	...	6.696503	144.6211	258.6787	100.0	0.0	0.0	258.4439	100.0	0.0	0.0
2025-05-13 10:00:00	2.025051e+11	2.025051e+11	22.35525	563.4611	901.9198	201.5875	297.2929	434.1642	21.22629	21.79152	...	6.626107	142.0318	258.4643	100.0	0.0	0.0	258.7210	100.0	0.0	0.0
2025-05-13 10:30:00	2.025051e+11	2.025051e+11	21.78752	605.3776	951.9034	207.3797	300.8767	440.0228	22.18126	22.40828	...	5.935644	149.8918	258.2034	100.0	0.0	0.0	258.9913	100.0	0.0	0.0
2025-05-13 11:00:00	2.025051e+11	2.025051e+11	21.38042	637.4340	990.0894	211.6744	301.4280	442.4090	22.66282	22.57568	...	6.051284	149.1903	258.0860	100.0	0.0	0.0	258.5698	100.0	0.0	0.0

28638 rows × 57 columns

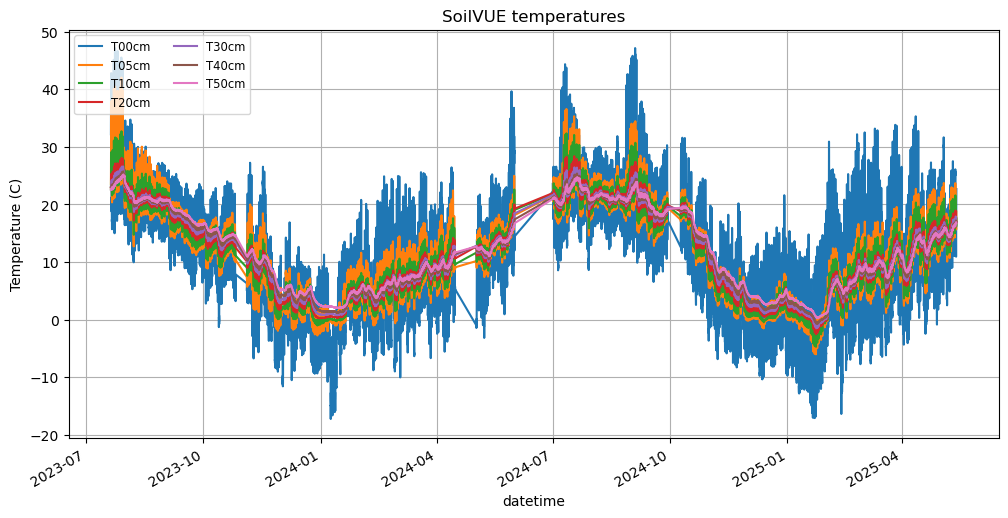

Plot SoilVUE data

Include data from the SI-111, which is technically measuring Temperature of the canopy top, but is T0cm for the timeframe being examined.

[6]:

df_grad[['T00cm','T05cm', 'T10cm', 'T20cm', 'T30cm','T40cm','T50cm']].plot(title='SoilVUE temperatures', ylabel='Temperature (C)', figsize=(12, 6))
plt.legend(loc='upper left', fontsize='small', ncol=2)
plt.grid(True)
plt.savefig('soilvue_temperatures.png', dpi=300, bbox_inches='tight')

../_images/notebooks_soil_heat_flux_comparison_10_0.png

Initial Estimate of G0

[7]:

# ---------- Parameters ------------------------------------------------------
DEPTH_TOP  = 0.05   # m  (sensor 1)
DEPTH_LOW  = 0.10   # m  (sensor 2)

# ---- Call helper – returns a pd.Series (W m‑2, positive downward)
G0_est = soil_heat.compute_heat_flux_conduction(
    df_grad,
    depth1=DEPTH_TOP,
    depth2=DEPTH_LOW,
    col_T1='T05cm',
    col_T2='T10cm',
    col_theta1='VWC05cm',
    col_theta2='VWC10cm',
    porosity = 0.5,
    k_dry = 0.45,
    k_sat = 2
)

G0_est_2 = soil_heat.compute_heat_flux_calorimetric(df_grad,depth_levels=[0.05,0.1,0.2,0.3],T_cols=['T05cm', 'T10cm','T20cm','T30cm'],theta_cols=['VWC05cm', 'VWC10cm', 'VWC20cm', 'VWC30cm'], )

Calculate amplitude and lag of data

[8]:

amp_values = pd.concat([soil_heat.diurnal_amplitude(df_grad['T00cm']),
                        soil_heat.diurnal_amplitude(df_grad['T05cm']),
                        soil_heat.diurnal_amplitude(df_grad['T10cm']),
                        soil_heat.diurnal_amplitude(df_grad['T20cm']),
                        soil_heat.diurnal_amplitude(df_grad['T30cm']),
],axis=1).round(2).rename(columns={
    'T00cm':'T00cm_amp',
    'T05cm':'T05cm_amp',
    'T10cm':'T10cm_amp',
    'T20cm':'T20cm_amp',
    'T30cm':'T30cm_amp',
})

amp_values

[8]:

	T00cm_amp	T05cm_amp	T10cm_amp	T20cm_amp	T30cm_amp
datetime
2023-07-20	24.01	14.31	6.49	2.49	1.28
2023-07-21	26.98	17.68	7.84	3.09	1.55
2023-07-22	27.36	19.15	9.20	3.77	1.97
2023-07-23	32.12	19.26	9.13	3.58	1.84
2023-07-24	26.79	16.73	8.07	2.93	1.42
...	...	...	...	...	...
2025-05-09	16.61	11.11	7.85	3.66	2.21
2025-05-10	18.50	9.19	6.55	3.04	1.83
2025-05-11	14.63	7.97	5.55	2.48	1.39
2025-05-12	14.91	9.42	6.57	2.96	1.73
2025-05-13	11.74	3.12	1.94	1.52	1.00

664 rows × 5 columns

[10]:

diff_00_10 = soil_heat.thermal_diffusivity_amplitude(amp_values['T00cm_amp'], amp_values['T10cm_amp'],z1=0.00,z2=0.10)#.median()#.plot(label='T00cm to T10cm')
diff_00_05 = soil_heat.thermal_diffusivity_amplitude(amp_values['T00cm_amp'], amp_values['T05cm_amp'],z1=0.00,z2=0.05)#.median()#.plot(label='T00cm to T05cm')
diff_05_10 = soil_heat.thermal_diffusivity_amplitude(amp_values['T05cm_amp'], amp_values['T10cm_amp'],z1=0.05,z2=0.10)#.median()#.plot(label='T05cm to T10cm')
diff = pd.concat([diff_00_10, diff_00_05, diff_05_10], axis=1)#.plot(title='Thermal diffusivity (amplitude method)', ylabel='m² s⁻¹')
diff['median'] = diff.median(axis=1)
#soil_heat.thermal_diffusivity_amplitude(amp_values['T05cm_amp'], amp_values['T20cm_amp'],z1=0.00,z2=0.20).plot(label='T05cm to T20cm')
#soil_heat.thermal_diffusivity_amplitude(amp_values['T05cm_amp'], amp_values['T30cm_amp'],z1=0.05,z2=0.30).plot()
#soil_heat.thermal_diffusivity_amplitude(amp_values['T10cm_amp'], amp_values['T20cm_amp'],z1=0.10,z2=0.20).plot()
print(f"Thermal diffusivity (T00cm to T10cm): {diff_00_10.median():.7f} m² s⁻¹")
print(f"Thermal diffusivity (T00cm to T05cm): {diff_00_05.median():.7f} m² s⁻¹")
print(f"Thermal diffusivity (T05cm to T10cm): {diff_05_10.median():.7f} m² s⁻¹")
print(f"Mean Thermal diffusivity (T00cm to T10cm): {np.mean([diff_00_10.median(),diff_00_05.median(),diff_05_10.median()]):.7f} m² s⁻¹")

Thermal diffusivity (T00cm to T10cm): 0.0000002 m² s⁻¹
Thermal diffusivity (T00cm to T05cm): 0.0000001 m² s⁻¹
Thermal diffusivity (T05cm to T10cm): 0.0000004 m² s⁻¹
Mean Thermal diffusivity (T00cm to T10cm): 0.0000002 m² s⁻¹

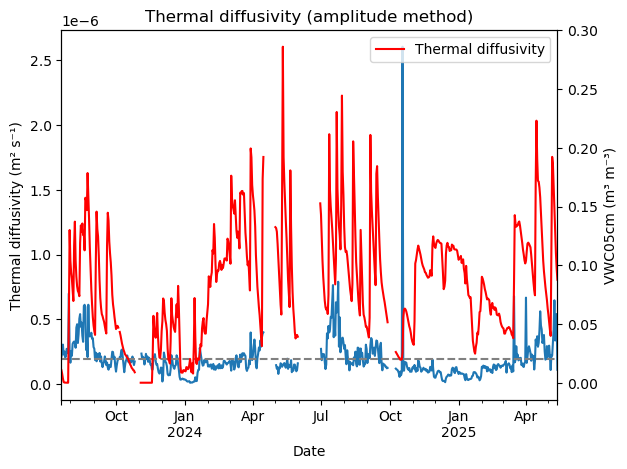

[11]:

diff['median'].plot(title='Thermal diffusivity (amplitude method)', ylabel='Thermal diffusivity (m² s⁻¹)')
plt.axhline(y=diff['median'].mean(), color='grey', linestyle='--', label='Mean diffusivity')
plt.xlabel('Date')
plt.twinx()
df_grad['VWC05cm'].resample('D').mean().plot(color='red')
plt.ylabel('VWC05cm (m³ m⁻³)')
plt.legend(['Thermal diffusivity', 'VWC05cm'])

[11]:

<matplotlib.legend.Legend at 0x25ab97cc550>

../_images/notebooks_soil_heat_flux_comparison_16_1.png

[12]:

import numpy as np
import pandas as pd
from soil_heat import (diurnal_amplitude, thermal_diffusivity_amplitude)

import numpy as np
import pandas as pd
from soil_heat import diurnal_amplitude, thermal_diffusivity_amplitude

def estimate_rhoc_dry(
    alpha: pd.Series,
    theta: pd.Series,
    porosity: float = 0.40,
    k_dry: float = 0.25,
    k_sat: float = 1.50,
    rhoc_w: float = 4.18e6,
    dry_quantile: float = 0.10,
) -> float:
    """Return volumetric heat capacity of *dry* soil (J m⁻³ K⁻¹)."""

    # keep only days where both alpha & theta are available
    theta, alpha = theta.align(alpha, join='inner')          # ⬅ key line

    frac_sat = np.clip(theta / porosity, 0.0, 1.0)
    lam = k_dry + (k_sat - k_dry) * frac_sat                 # W m⁻¹ K⁻¹

    # --- 3. Heat capacity & dry-soil estimate ------------------
    Cv = lam / alpha                                         # J m⁻³ K⁻¹
    rhoc_dry = (Cv - theta * rhoc_w) / (1.0 - theta)

    dry_days = theta <= theta.quantile(dry_quantile)
    return float(rhoc_dry.loc[dry_days].median())

[13]:

alpha_daily = diff['median']
theta_daily = df_grad['VWC05cm'].resample('D').mean()

estimate_rhoc_dry(alpha_daily, theta_daily, porosity=0.40, k_dry=0.25, k_sat=1.50, rhoc_w=4.18e6, dry_quantile=0.10)*1e-6

[13]:

1.6819569524012492

[18]:

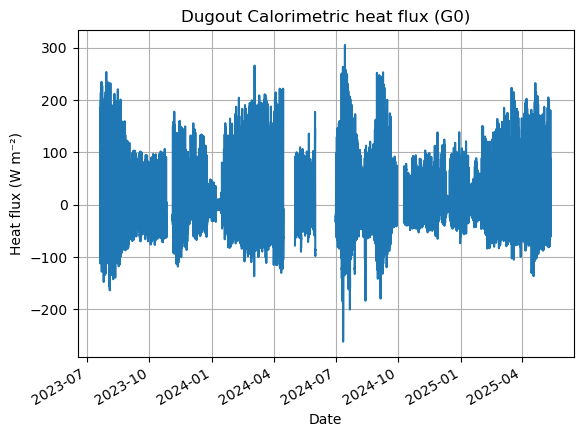

G0 = soil_heat.compute_heat_flux_calorimetric(
    df_grad,
    depth_levels = [0.05, 0.10, 0.20, 0.30],
    T_cols = ['T05cm', 'T10cm', 'T20cm', 'T30cm'],
    theta_cols = ['VWC05cm', 'VWC10cm', 'VWC20cm', 'VWC30cm'],
    C_dry = 1.72e6,
    C_w = 4.2e6,)
G0a = np.where(G0<-500,np.nan,G0)
G0a = np.where(G0a>500,np.nan,G0a)
G0 = pd.Series(G0a, index=df_grad.index, name='G0_calorimetric')
G0.plot()
plt.title('Dugout Calorimetric heat flux (G0)')
plt.xlabel('Date')
plt.ylabel('Heat flux (W m⁻²)')
plt.grid(True)

../_images/notebooks_soil_heat_flux_comparison_19_0.png

[ ]:

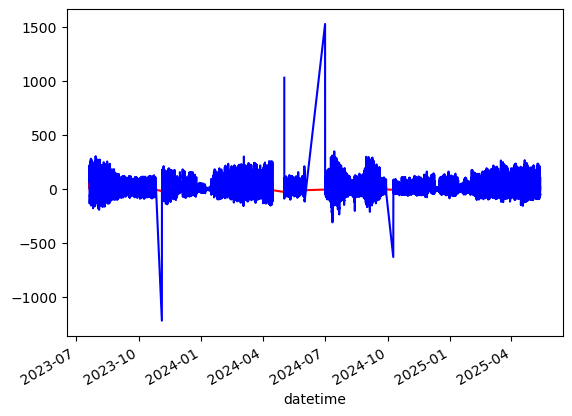

[78]:

G0_est.plot(label='G0_est_grad', color='red')
G0_est_2.plot(label='G0_est_calorimetric', color='blue')

[78]:

<Axes: xlabel='datetime'>

../_images/notebooks_soil_heat_flux_comparison_21_1.png

[32]:

eddy_station_path = Path("G:/Shared drives/UGS_Flux/Data_Downloads/Dugout_Ranch/Eddy")

dfs_edd = {}
# ---------- SoilVUE data ----------------------------------------------------
for file in eddy_station_path.glob("*Flux_AmeriFluxFormat*.dat"):
    fileno = file.stem.split("_")[-1].replace("AmeriFlux", "")
    #print(file.stem)
    dfs_edd[fileno] = pd.read_csv(file, na_values=['NAN'], engine='python',)

[ ]:

met_w_g = pd.concat([G0, G0_est, G0_est_2,df_grad], axis=1)
g = pd.concat([G0, G0_est, G0_est_2],axis=1)

eddy = pd.concat(dfs_edd, ignore_index=True)
eddy.drop(columns=['TIMESTAMP', 'RECORD'], inplace=True, errors='ignore')
eddy['datetime'] = pd.to_datetime(eddy['TIMESTAMP_START'], format='%Y%m%d%H%M')
eddy = eddy.set_index('datetime').sort_index().drop_duplicates()
met_n_eddy_g = pd.merge(eddy, met_w_g, left_index=True, right_index=True, how='outer', suffixes=('_eddy',''))

[105]:

for col in met_n_eddy_g.columns:
    if "NET" in col:
        print(col)

NETRAD_eddy
NETRAD

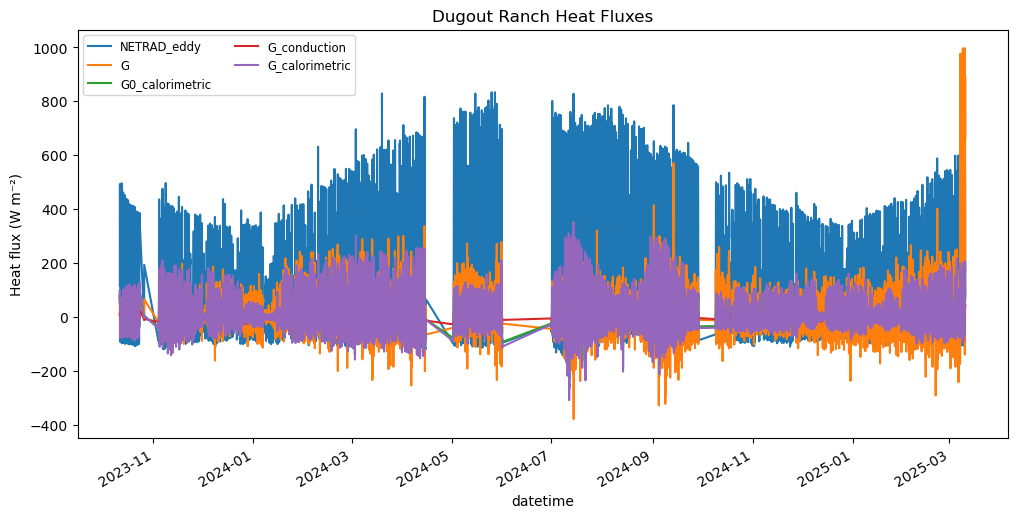

[106]:

g_vals = met_n_eddy_g[['NETRAD_eddy','G','G0_calorimetric','G_conduction','G_calorimetric']].dropna()
g_vals = g_vals[g_vals.abs()<1000].dropna()  # Filter out extreme values
g_vals.plot(title='Dugout Ranch Heat Fluxes', ylabel='Heat flux (W m⁻²)', figsize=(12, 6))
plt.legend(loc='upper left', fontsize='small', ncol=2)

[106]:

<matplotlib.legend.Legend at 0x25adeb66fd0>

../_images/notebooks_soil_heat_flux_comparison_25_1.png

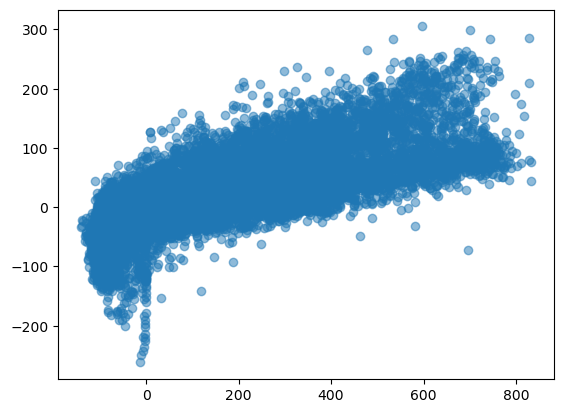

[107]:

#new_df = g

x = g_vals['NETRAD_eddy']
y = g_vals['G0_calorimetric']
plt.scatter(x, y, alpha=0.5)
import statsmodels.api as sm

X = sm.add_constant(x)      # adds intercept term
model = sm.OLS(y, X).fit()  # fit the model
print(model.summary())

                            OLS Regression Results
==============================================================================
Dep. Variable:        G0_calorimetric   R-squared:                       0.625
Model:                            OLS   Adj. R-squared:                  0.625
Method:                 Least Squares   F-statistic:                 3.647e+04
Date:                Sun, 15 Jun 2025   Prob (F-statistic):               0.00
Time:                        21:09:52   Log-Likelihood:            -1.0969e+05
No. Observations:               21909   AIC:                         2.194e+05
Df Residuals:                   21907   BIC:                         2.194e+05
Df Model:                           1
Covariance Type:            nonrobust
===============================================================================
                  coef    std err          t      P>|t|      [0.025      0.975]
-------------------------------------------------------------------------------
const         -15.8099      0.258    -61.317      0.000     -16.315     -15.305
NETRAD_eddy     0.2201      0.001    190.979      0.000       0.218       0.222
==============================================================================
Omnibus:                     1191.533   Durbin-Watson:                   0.252
Prob(Omnibus):                  0.000   Jarque-Bera (JB):             3759.978
Skew:                           0.231   Prob(JB):                         0.00
Kurtosis:                       4.976   Cond. No.                         236.
==============================================================================

Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.

../_images/notebooks_soil_heat_flux_comparison_26_1.png

[ ]:

ebal_g0 = met_n_eddy_g[['G0_calorimetric','NETRAD_eddy','LE','H','G','NETRAD']].dropna()

ebal_g0_daily = ebal_g0.resample('D').sum(min_count=48).dropna()
for col in ebal_g0_daily.columns:
    if col not in ['NETRAD_eddy','NETRAD']:
        ebal_g0_daily[col] = np.where(ebal_g0_daily[col].abs() > ebal_g0_daily['NETRAD_eddy'].abs(), np.nan, ebal_g0_daily[col])
ebal_g0_daily = ebal_g0_daily.dropna()

x = ebal_g0_daily['NETRAD_eddy'] - ebal_g0_daily['G0_calorimetric']
y = ebal_g0_daily['LE'] + ebal_g0_daily['H']
plt.scatter(x, y, alpha=0.5)
plt.xlabel('NETRAD - G (W m⁻²)')
plt.ylabel('LE + H (W m⁻²)')
X = sm.add_constant(x)      # adds intercept term
model = sm.OLS(y, X).fit()  # fit the model
print(model.summary())
plt.title('Energy Balance Closure: Dugout Ranch')
plt.grid(True)

plt.plot(x,model.predict(X), color='red', label='OLS Fit')
plt.plot(x, x, color='green', linestyle='--', label='1:1 Line')

[109]:

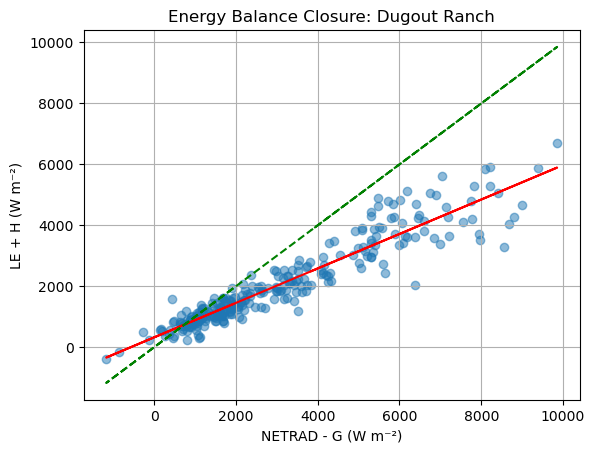

ebal_g0 = met_n_eddy_g[['G0_calorimetric','NETRAD_eddy','LE','H','G']].dropna()

ebal_g0_daily = ebal_g0.resample('D').sum(min_count=48).dropna()
for col in ebal_g0_daily.columns:
    if col != 'NETRAD_eddy':
        ebal_g0_daily[col] = np.where(ebal_g0_daily[col].abs() > ebal_g0_daily['NETRAD_eddy'].abs(), np.nan, ebal_g0_daily[col])
ebal_g0_daily = ebal_g0_daily.dropna()

x = ebal_g0_daily['NETRAD_eddy'] - ebal_g0_daily['G0_calorimetric']
y = ebal_g0_daily['LE'] + ebal_g0_daily['H']
plt.scatter(x, y, alpha=0.5)
plt.xlabel('NETRAD - G (W m⁻²)')
plt.ylabel('LE + H (W m⁻²)')
X = sm.add_constant(x)      # adds intercept term
model = sm.OLS(y, X).fit()  # fit the model
print(model.summary())
plt.title('Energy Balance Closure: Dugout Ranch')
plt.grid(True)

plt.plot(x,model.predict(X), color='red', label='OLS Fit')
plt.plot(x, x, color='green', linestyle='--', label='1:1 Line')

                            OLS Regression Results
==============================================================================
Dep. Variable:                      y   R-squared:                       0.887
Model:                            OLS   Adj. R-squared:                  0.886
Method:                 Least Squares   F-statistic:                     2151.
Date:                Sun, 15 Jun 2025   Prob (F-statistic):          4.97e-132
Time:                        21:10:36   Log-Likelihood:                -2090.7
No. Observations:                 277   AIC:                             4185.
Df Residuals:                     275   BIC:                             4193.
Df Model:                           1
Covariance Type:            nonrobust
==============================================================================
                 coef    std err          t      P>|t|      [0.025      0.975]
------------------------------------------------------------------------------
const        323.2827     46.499      6.952      0.000     231.744     414.822
0              0.5654      0.012     46.378      0.000       0.541       0.589
==============================================================================
Omnibus:                       21.781   Durbin-Watson:                   1.000
Prob(Omnibus):                  0.000   Jarque-Bera (JB):               76.449
Skew:                          -0.115   Prob(JB):                     2.51e-17
Kurtosis:                       5.563   Cond. No.                     6.41e+03
==============================================================================

Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
[2] The condition number is large, 6.41e+03. This might indicate that there are
strong multicollinearity or other numerical problems.

[109]:

[<matplotlib.lines.Line2D at 0x25adf442490>]

../_images/notebooks_soil_heat_flux_comparison_28_2.png

[110]:

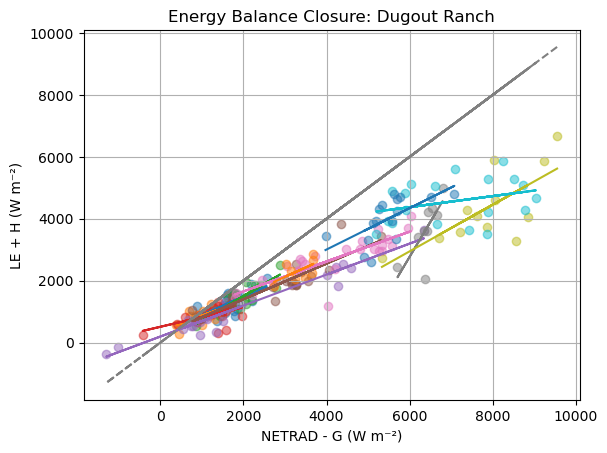

import scipy
for year in range(2023, 2025):
    for month in ebal_g0_daily.index.month.unique():
        df = ebal_g0_daily[(ebal_g0_daily.index.month == month)&(ebal_g0_daily.index.year == year)].dropna()
        if df.empty:
            continue
        else:
            x = df['NETRAD_eddy'] - df['G']
            y = df['LE'] + df['H']
            slope, intercept, r, p, se = scipy.stats.linregress(x, y)

            plt.scatter(x, y, alpha=0.5, label=f'Month {month}')
            plt.xlabel('NETRAD - G (W m⁻²)')
            plt.ylabel('LE + H (W m⁻²)')
            print(f"r-squared for {year}-{month}: {r*r:.3f}")

            print(f"Slope for {year}-{month}: {slope:.3f}")
            plt.title(f'Energy Balance Closure: Dugout Ranch')
            plt.grid(True)
            plt.plot(x, x*slope + intercept, label='OLS Fit')
            plt.plot(x, x, linestyle='--', label='1:1 Line',color='grey')

r-squared for 2023-11: 0.431
Slope for 2023-11: 0.597
r-squared for 2023-12: 0.431
Slope for 2023-12: 0.500
r-squared for 2024-11: 0.708
Slope for 2024-11: 0.793
r-squared for 2024-12: 0.308
Slope for 2024-12: 0.315
r-squared for 2024-1: 0.945
Slope for 2024-1: 0.500
r-squared for 2024-2: 0.784
Slope for 2024-2: 0.575
r-squared for 2024-3: 0.730
Slope for 2024-3: 0.483
r-squared for 2024-4: 0.549
Slope for 2024-4: 2.261
r-squared for 2024-7: 0.519
Slope for 2024-7: 0.753
r-squared for 2024-8: 0.099
Slope for 2024-8: 0.179
r-squared for 2024-9: 0.412
Slope for 2024-9: 0.668
r-squared for 2024-10: 0.369
Slope for 2024-10: 0.613

../_images/notebooks_soil_heat_flux_comparison_29_1.png

[101]:

import scipy
for year in range(2023, 2025):
    for month in ebal_g0_daily.index.month.unique():
        df = ebal_g0_daily[(ebal_g0_daily.index.month == month)&(ebal_g0_daily.index.year == year)].dropna()
        if df.empty:
            continue
        else:
            x = df['NETRAD'] - df['G0_calorimetric']
            y = df['LE'] + df['H']
            slope, intercept, r, p, se = scipy.stats.linregress(x, y)

            plt.scatter(x, y, alpha=0.5, label=f'Month {month}')
            plt.xlabel('NETRAD - G (W m⁻²)')
            plt.ylabel('LE + H (W m⁻²)')
            print(f"r-squared for {year}-{month}: {r*r:.3f}")

            print(f"Slope for {year}-{month}: {slope:.3f}")
            plt.title(f'Energy Balance Closure: Dugout Ranch')
            plt.grid(True)
            plt.plot(x, x*slope + intercept, label='OLS Fit')
            plt.plot(x, x, linestyle='--', label='1:1 Line',color='grey')

r-squared for 2023-11: 0.850
Slope for 2023-11: 0.815
r-squared for 2023-12: 1.000
Slope for 2023-12: -4.294
r-squared for 2024-11: 0.869
Slope for 2024-11: 1.319
r-squared for 2024-12: 0.714
Slope for 2024-12: 0.757
r-squared for 2024-1: 0.910
Slope for 2024-1: 0.845
r-squared for 2024-2: 0.829
Slope for 2024-2: 0.820
r-squared for 2024-3: 0.817
Slope for 2024-3: 0.679
r-squared for 2024-4: 0.213
Slope for 2024-4: 1.657
r-squared for 2024-7: 0.140
Slope for 2024-7: 0.438
r-squared for 2024-8: 0.126
Slope for 2024-8: 0.199
r-squared for 2024-9: 0.339
Slope for 2024-9: 0.355
r-squared for 2024-10: 0.000
Slope for 2024-10: nan

c:\Users\paulinkenbrandt\.conda\envs\py313\Lib\site-packages\scipy\stats\_stats_py.py:10729: RuntimeWarning: invalid value encountered in scalar divide
  slope = ssxym / ssxm
c:\Users\paulinkenbrandt\.conda\envs\py313\Lib\site-packages\scipy\stats\_stats_py.py:10743: RuntimeWarning: invalid value encountered in sqrt
  t = r * np.sqrt(df / ((1.0 - r + TINY)*(1.0 + r + TINY)))
c:\Users\paulinkenbrandt\.conda\envs\py313\Lib\site-packages\scipy\stats\_stats_py.py:10749: RuntimeWarning: invalid value encountered in scalar divide
  slope_stderr = np.sqrt((1 - r**2) * ssym / ssxm / df)

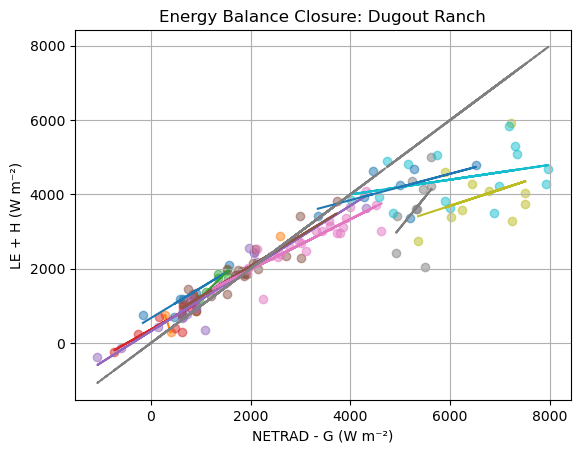

../_images/notebooks_soil_heat_flux_comparison_30_2.png

[ ]:

# ---------- Eddy‑covariance flux data ---------------------------------------

flux_path_1 = station_path / "e20250513/21314_Flux_AmeriFluxFormat_22.dat"
flux_path_2 = station_path / "e20250513/21314_Flux_AmeriFluxFormat_23.dat"

df_flux_1 = pd.read_csv(flux_path_1, na_values=['NAN'])
df_flux_2 = pd.read_csv(flux_path_2, na_values=['NAN'])
df_flux = pd.concat([df_flux_1, df_flux_2], ignore_index=True)
# Parse timestamp and keep only ground‑heat flux variable ‘G’
df_flux['datetime'] = pd.to_datetime(df_flux['TIMESTAMP_START'].astype(str),
                                     format='%Y%m%d%H%M')

df_flux = df_flux[['datetime', 'G']].dropna(subset=['G']).astype({'G': float})

# Sub‑set to 11 July 2024 (matches the SoilVUE example file)
#mask_0711 = df_flux['datetime'].dt.strftime('%Y%m%d') == '20240711'
#df_flux_0711 = df_flux.loc[mask_0711].set_index('datetime')
#df_flux_0711.head()
df_flux

	datetime	G
0	2025-03-27 23:30:00	-21.953250
1	2025-03-28 00:00:00	8.787329
2	2025-03-28 00:30:00	-7.845843
3	2025-03-28 01:00:00	11.065370
4	2025-03-28 01:30:00	-7.604448
...	...	...
2227	2025-05-13 09:00:00	-36.622820
2228	2025-05-13 09:30:00	-21.398640
2229	2025-05-13 10:00:00	-1.253632
2230	2025-05-13 10:30:00	21.987450
2231	2025-05-13 11:00:00	7.689254

2232 rows × 2 columns

[42]:

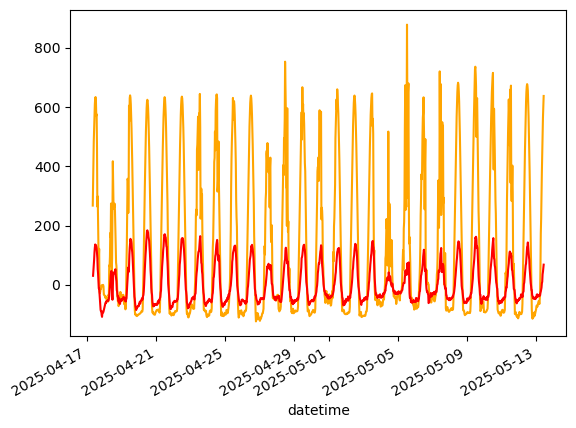

df_grad['NETRAD'].plot(label='NETRAD', color='orange')
G0.plot(label='G0_est_grad', color='red')

[42]:

<Axes: xlabel='datetime'>

../_images/notebooks_soil_heat_flux_comparison_32_1.png

[ ]:

G0

datetime
2025-04-17 08:06:00          NaN
2025-04-17 08:30:00    30.251806
2025-04-17 09:00:00    46.027718
2025-04-17 09:30:00    66.398487
2025-04-17 10:00:00    84.717237
                         ...
2025-05-13 09:00:00    10.241025
2025-05-13 09:30:00    35.440317
2025-05-13 10:00:00    43.507711
2025-05-13 10:30:00    56.521603
2025-05-13 11:00:00    67.905579
Name: G_calorimetric, Length: 1255, dtype: float64

[43]:

df_NETRAD_G0 = pd.concat([df_grad['NETRAD'], G0], axis=1).dropna()

x = df_NETRAD_G0['NETRAD']
y = df_NETRAD_G0['G_calorimetric']

import statsmodels.api as sm

X = sm.add_constant(x)      # adds intercept term
model = sm.OLS(y, X).fit()  # fit the model
print(model.summary())

                            OLS Regression Results
==============================================================================
Dep. Variable:         G_calorimetric   R-squared:                       0.856
Model:                            OLS   Adj. R-squared:                  0.856
Method:                 Least Squares   F-statistic:                     7441.
Date:                Sun, 15 Jun 2025   Prob (F-statistic):               0.00
Time:                        08:23:29   Log-Likelihood:                -5817.9
No. Observations:                1254   AIC:                         1.164e+04
Df Residuals:                    1252   BIC:                         1.165e+04
Df Model:                           1
Covariance Type:            nonrobust
==============================================================================
                 coef    std err          t      P>|t|      [0.025      0.975]
------------------------------------------------------------------------------
const        -29.8550      0.796    -37.527      0.000     -31.416     -28.294
NETRAD         0.2374      0.003     86.259      0.000       0.232       0.243
==============================================================================
Omnibus:                       79.228   Durbin-Watson:                   0.524
Prob(Omnibus):                  0.000   Jarque-Bera (JB):              308.820
Skew:                           0.137   Prob(JB):                     8.72e-68
Kurtosis:                       5.416   Cond. No.                         325.
==============================================================================

Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.

[45]:

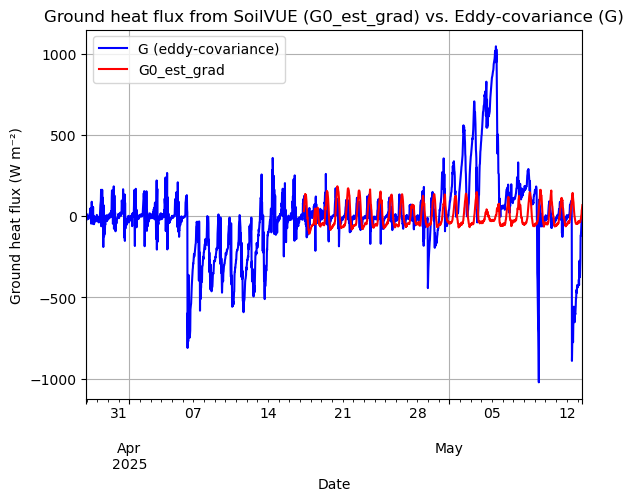

df_flux.plot(x='datetime', y='G', label='G (eddy‑covariance)', color='blue')
G0.plot(label='G0_est_grad', color='red',)
plt.xlabel('Date')
plt.ylabel('Ground heat flux (W m⁻²)')
plt.title('Ground heat flux from SoilVUE (G0_est_grad) vs. Eddy‑covariance (G)')
plt.legend()
plt.grid(True)

../_images/notebooks_soil_heat_flux_comparison_35_0.png

[ ]:

# Resample the high‑resolution SoilVUE estimates to 30‑min mean
G0_est_30min = G0_est.resample('30min').mean()

# Align indices (inner join)
df_cmp = pd.concat([G0_est_30min, df_flux_0711['G']], axis=1).dropna()
df_cmp.head()

	G_conduction	G
datetime
2024-07-11 05:30:00	-26.632568	-97.07862
2024-07-11 06:00:00	-23.820008	-42.72312
2024-07-11 06:30:00	-19.676980	-60.82810
2024-07-11 07:00:00	-14.842567	13.72619
2024-07-11 07:30:00	-6.595578	49.94262

[ ]:

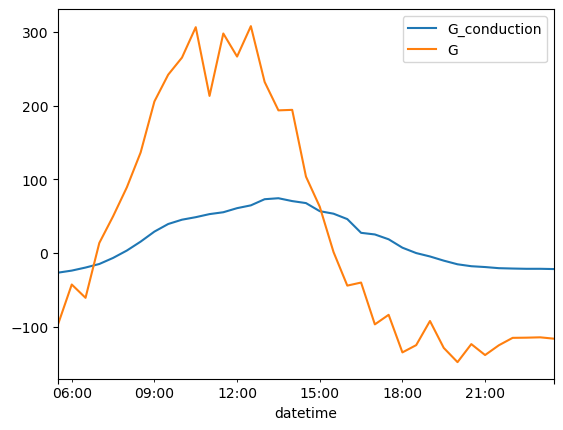

df_cmp.plot()

<Axes: xlabel='datetime'>

../_images/notebooks_soil_heat_flux_comparison_37_1.png

[ ]:

rmse_val = gao.rmse(df_cmp['G0_est_grad'].values, df_cmp['G'].values)
nme_val  = gao.nme(df_cmp['G0_est_grad'].values, df_cmp['G'].values)

print(f'RMSE  = {rmse_val:6.2f} W m⁻²')
print(f'NME   = {nme_val:6.2f} %')

[ ]:

# ---------- Time‑series overlay --------------------------------------------
plt.figure(figsize=(10, 4))
df_cmp['G0_est_grad'].plot(label='Estimated G₀ (gradient)', lw=1.2)
df_cmp['G'].plot(label='Measured G (plate)', lw=1.2)
plt.axhline(0, color='k', lw=0.4)
plt.ylabel('W m$^{-2}$')
plt.title('11 Jul 2024  •  30‑min surface ground‑heat flux')
plt.legend()
plt.tight_layout()
plt.show()

# ---------- Scatter plot ----------------------------------------------------
plt.figure(figsize=(4, 4))
plt.scatter(df_cmp['G'], df_cmp['G0_est_grad'], s=20)
plt.plot([-150, 150], [-150, 150], 'k--', lw=0.7)
plt.xlabel('Measured G (W m$^{-2}$)')
plt.ylabel('Estimated G₀ (W m$^{-2}$)')
plt.title('Gradient method performance')
plt.tight_layout()
plt.show()
